540-180 HI-VIZ

Introducing the 540-180 HI-VIZ telehandler which boasts an impressive 4000kg lift capacity and 18m lift height.

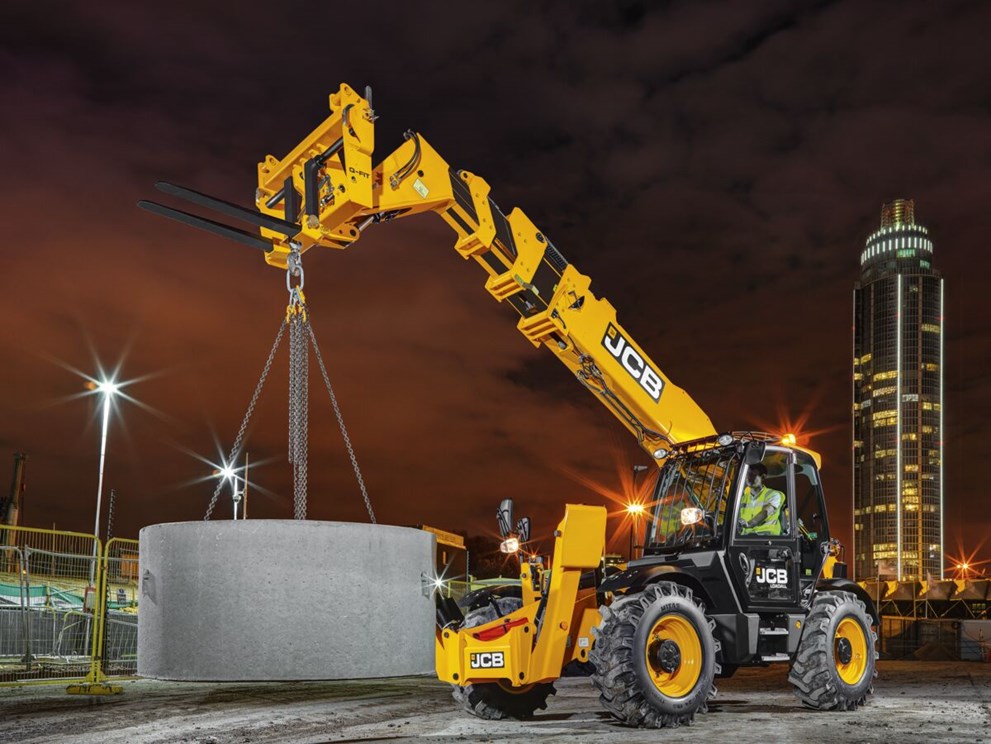

JCB 540-180 Hi-Viz Telescopic Handler

The JCB 540-180 Hi-Viz delivers outstanding performance, safety, and value — making it the ideal choice for the rental industry.

Designed for maximum return on investment, it offers the lowest cost of ownership in its class, while JCB’s exceptional residual value ensures your Loadall retains more worth when it’s time to upgrade.

Download Brochure

Machine Specification

  • Max. Lift Height

    17.51 m

  • Max. Lift Capacity

    4,000 kg

  • Max. Engine Power

    55 kW

  • Max. Reach

    13.34 m


  • Travel Speed

    29 kph

  • Operating Weight

    11,380 kg

Safety & Visibility

  • The JCB 540-180 Hi-Viz sets the standard for on-site safety and visibility, with a low boom pivot point providing unrivalled all-round vision.
  • Patented load control and hose burst check valves ensure secure load handling and protect both operator and bystanders.
  • Optional reversing camera and pulse radar systems, with dash-mounted displays, enhance awareness on busy job sites.

Productivity & Performance

  • Innovative 4-piece boom design delivers smooth, proportional movement for faster lifting cycles.
  • Regenerative hydraulics reduce cycle times by up to 20% and cut fuel use by 4.4%.
  • 10% more manoeuvrable than the 540-170 and 1,000kg lighter, with a compact wheelbase and three steering modes for effortless site movement.

Durability & Low Cost of Ownership

  • Industry-leading 1,000-hour service intervals and easy ground-level checks minimise downtime and costs.
  • JCB LiveLink telematics tracks fuel use, service alerts, and machine health for maximum uptime.
  • Built tough with a fully welded chassis and reinforced U-shaped boom, the 540-180 Hi-Viz delivers lasting strength and reliability.
